HELUKABEL SOLARFLEX-X H1Z2Z2-K 1C x 4mm- BLACK

The SOLARFLEX-X is used for cabling solar modules (HD 60364-7-712). Suitable for use in fixed installations both indoors and outdoors, in walls, pipes, conduits, direct burial and similar systems.

Weight:7.29 kg

Length:100 m

Area:6 mm²

Colour:Black

Cores:1 – N

Max Current:57

Max Voltage:1800

You can find out more about Helukabel here

The SOLARFLEX-X is used for cabling solar modules (HD 60364-7-712). Suitable for use in fixed installations both indoors and outdoors, in walls, pipes, conduits, direct burial and similar systems.

Complies with class II protection; is short-circuit and earth fault proof in accordance with HD 60364-5-52.

Weight: 5.52 kg

Length:100 m

Area: 4 mm2

Colour: Red

Cores:1 – N

Max Current: 44

Max Voltage:1800

If you’d like to ask us a question you can here.

Installation is easy, with a plug and play solution that can save time when installing.

• 98% charge and discharge efficiency
• 90% DoD
• Wide temperature tolerance
• Easy to install
• >6000 Life cycle
• CAN/RS485 communication
• Scalable up to 20.48kWh

Weight:56 kg

Battery Type:Lithium Ion

Nominal Energy:5120 Wh

Depth of discharge:90.00 %

Voltage:48 V

Continuous Discharge Rate (Normal Use):5120 W

Maximum Discharge Rate (5 Minutes):6000 W

Surge Discharge Rate (15 Seconds):7200 W

Maximum Charge Rate (5 Minutes):5120 W

Sunsynk Sun Hybrid Inverter Features

• Dual MPPT design
• Compatible with most Lithium-ion batteries and Lead Acid batteries
• Mobile App for monitoring
• Anti-islanding protection
• Automatic switching from Grid-Tied to Off-Grid mode
• Zero export function
• Up to 16 units can be paralleled
• Essential and Non-Essential Loads outputs
• Comes with the Wi-Fi logger and CT
• Compatible with SolarMan App for Monitoring

Weight:25 kg

Rated Power:5,000 W

Min PPT Voltage:125 V

Max PPT Voltage:425 V

DC Startup Voltage:150 V

DC Shutdown Voltage:150 V

Max Input Voltage:500 V

Max DC Power:6,500 W

Max AC Power (5 Minutes):5,500 W

Surge AC Power (1 Second):7,500 W

Max DC Current:28.6 A

Max DC Inputs:2

Has DC Fuses:0

Connector:MC4

Included Connectors:0

Euro Efficiency:96.5 %

Transformer:None

MPPT Quantity :2

Has Integrated DC Switch:Yes

You can contact us here

And to connect with our Facebook click here.

Assembled with 11BB PERC cells, a half-cell configuration of the module offers high power output, better temperature dependent performance, lower shading effect on power generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Features:

• Higher Output Power
• Lower LCOE
• Less shading and lower resistive loss
• Better mechanical loading tolerance
• Module efficiency of 20.6%
• 12 Year Product Warranty
• 25 Year Linear Output Warranty

Some certification pending from suppliers.

Weight:26 kg

Rated Power:490

WMCS Reference:BABT 8515-219

Length:2,094 mm

Width:1,134 mm

Depth:35 mm

VMPP:37.99

VIMPP:12.9 AIsc:13.79 A

Voc:45.33 V

Temp. Coefficient (Mpp):-0.35 %

Clamp position on panel:Long and short side

Connector Type:QC Solar QC 4.10

Efficiency:20.6 %

To find out more by contacting us here

Our commercial battery ranges are flexible, ensuring whatever size of system or project you need, we have the right solution. Flexibility, (and probably most important) the right price, makes your ROI even stronger.

Get in touch by emailing us at sales@solarways.co.za to find out more or talk to one of team about your project. We can design a system that will get your project off the ground and charging ahead. Soltaro is at your service.

SOLTARO COMMERCIAL BATTERY STORAGE – BUSINESS ENERGY MADE SIMPLE

Soltaro Commercial Battery storage can revolutionise the way your organisation or business uses energy. Business energy costs are an increasing frustration and account for a great deal of cost from the budget.

Regardless of the type of business, Soltaro Commercial Systems have a battery storage solution that will save you money and lower your costs.

Often businesses accept their energy costs and feel they can do little to really impact this, but the reality is the opposite. The right tariff combined with intelligent battery storage can transform those energy cost

Industries such as hospitality, construction and healthcare can be a major ‘energy cost’ headache biut they are an essential part of working life. Think of office blocks housing millions of workers, with lights, temperature control and heating.

They often require additional flexibility for shift workers, security or cleaning staff outside of standard hours. All of which comes at a high cost.

Housing developments or apartment blocks can also be a serious headache when it comes to low cost, sustainable energy. Most countries require new developments.

Which embody multiple energy saving measures to ensure that the relevant low carbon and sustainable elements are helping to achieve their targets for emissions and sustainability.

Start the process of project planning your energy saving today. Thinking that commercial battery storage isn’t a viable option for your business? Think again. We have proven cost savings for a multitude of businesses.

Speaking of business connect with us here on Facebook and let us in on your business and how we can assist you make the change and begin to save.

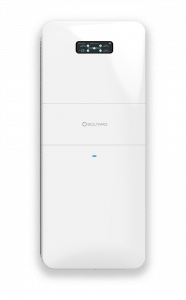

Soltaro’s home battery storage range is comprehensive, and now featuring the Soltaro AIO2 ESS. Expandable storage that is durable, well designed and meant to last.

We cater for all sizes. Our expandable modules ensure you can increase your energy storage. Handy for when you have a growing family. With the addition of another module, you will meet their growing demands.

We have batteries and inverters to compliment your existing solar PV system. As well as hybrid and all-in-one systems. Beautifully designed our domestic battery storage blends seamlessly in all settings.

Our customer service is second to none. Together with our remote monitoring technology your updates can be remotely applied. Keeping you up to date in real time. Take a look at our home battery storage and talk to our team about your energy needs.
